Swivel shackles are vital components in marine environments, used to connect lines, ropes, chains, and other hardware while allowing for rotation to prevent twisting or entangling. Whether used on ships, sailboats, fishing vessels, or in marine construction, swivel shackles help improve the efficiency and safety of marine operations. However, these components are often exposed to harsh conditions such as saltwater, high humidity, UV rays, and heavy loads, all of which can contribute to wear and tear.
Proper maintenance and care of swivel shackles are essential to ensuring they perform reliably and last a long time. In this article, we’ll explore how to properly care for and maintain swivel shackles, the importance of regular inspections, how to handle repairs, and steps to extend their lifespan in marine environments.

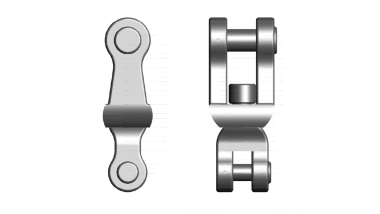

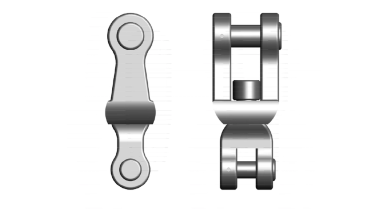

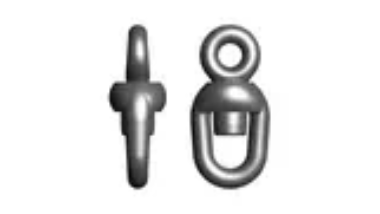

A swivel shackle is a type of rigging hardware that combines a traditional shackle with a rotating mechanism. The rotating feature of the swivel allows connected components (such as lines, chains, or ropes) to move independently, preventing twisting or tangling, which can occur when these components are under tension. The body of the shackle is usually made from corrosion-resistant materials like stainless steel, ensuring its durability in the marine environment.
In marine environments, swivel shackles are commonly used in mooring systems, sailboat rigging, anchor lines, towing applications, and safety operations. They are essential for maintaining smooth operations, especially in situations where lines are subjected to changing forces, such as wind, currents, or waves.
Swivel shackles are exposed to a range of environmental stresses that can cause them to degrade over time. Without proper care, these shackles can become corroded, worn, or damaged, leading to potential system failures or accidents. Regular maintenance ensures that they continue to perform efficiently and safely.
Prevent corrosion and rust: Saltwater and moisture can corrode metal components, weakening the shackle.
Reduce wear and tear: Frequent use of shackles can lead to friction, which causes the metal to wear down.
Ensure safe operation: A well-maintained shackle is less likely to fail under load, preventing accidents and ensuring safety during critical operations.
Extend lifespan: Proper maintenance can extend the life of the swivel shackle, saving money on replacements.
Swivel shackles in marine environments are subject to several conditions that can cause them to deteriorate if not properly maintained. These conditions include:
Corrosion: Exposure to saltwater and humidity leads to rust and corrosion, which can weaken the shackle and cause it to fail under load.
Friction and Wear: The rotating parts of the swivel can experience friction, leading to wear and potential damage to internal components.
UV Exposure: Prolonged exposure to the sun's ultraviolet rays can degrade some materials and coatings, causing them to become brittle or cracked.
Heavy Loads: Swivel shackles often bear significant loads, which can lead to deformation or weakening of the shackle material over time.
Debris and Contaminants: Mud, sand, and other debris can get into the moving parts of the shackle, causing it to jam or corrode more quickly.
To ensure that swivel shackles continue to perform well in these harsh environments, it is crucial to regularly inspect, clean, lubricate, and replace parts when necessary.
The first and most important step in maintaining swivel shackles is regular inspection. Frequent visual checks help identify issues before they lead to failure. Always inspect shackles after every use, particularly when they have been exposed to heavy loads, harsh weather, or the marine environment.
Corrosion: Check for signs of rust or pitting on the shackle body, pin, or swivel mechanism. If any part of the shackle shows signs of corrosion, it needs immediate attention.
Wear and Tear: Inspect the pin, bearing, and body for signs of wear, cracks, or deformation. Pay special attention to the swivel mechanism—if it becomes stiff, jammed, or shows resistance, it may require lubrication or replacement.
Loose Parts: Ensure that all pins, nuts, and bolts are securely fastened. A loose pin can cause the shackle to fail under load.
Swivel Movement: Check that the swivel mechanism moves freely. If there is any resistance or stiffness in rotation, the bearing or lubrication may need attention.
Alignment: Make sure that the shackle is aligned correctly and that there is no misalignment between the body and the pin that could cause it to bind under load.
Saltwater and debris are the primary culprits behind corrosion and damage to swivel shackles. After each use, especially in saltwater environments, it is essential to rinse the shackles thoroughly to remove any salt, dirt, or grit that may have accumulated.
Rinse with Freshwater: After each use, rinse the swivel shackle with fresh water to remove any saltwater and debris. This helps to prevent corrosion and build-up that could affect its performance.
Use a Soft Brush: If the shackle has accumulated stubborn dirt or grime, use a soft brush (such as a nylon bristle brush) to scrub the surface gently. Avoid using abrasive materials that could scratch or damage the surface.
Inspect for Residual Debris: While cleaning, ensure that any dirt or sand trapped within the swivel mechanism is removed. This can prevent jamming or excessive wear.
Lubrication is a crucial part of swivel shackle maintenance. The moving parts, such as the swivel mechanism and the pin, are subject to friction, which can cause wear over time. Regular lubrication keeps the shackle operating smoothly and helps prevent rust and corrosion.
Choose the Right Lubricant: Use a marine-grade lubricant that is designed to withstand saltwater exposure and extreme temperatures. Products such as grease or anti-corrosion spray can help protect the metal surfaces from corrosion and reduce friction.
Lubricate Moving Parts: Apply lubricant to the pin, bearing, and swivel mechanism. Ensure that the lubricant penetrates into all the moving parts to provide maximum protection.
Remove Excess Lubricant: After applying the lubricant, wipe off any excess to prevent dirt and debris from sticking to the shackle.
Reapply Regularly: Depending on the frequency of use and exposure to the elements, lubricate the swivel shackle at least once every few months, or more often if it is used heavily.
Corrosion is one of the biggest threats to swivel shackles in marine environments. Even stainless steel shackles can corrode over time if not properly maintained. To reduce the risk of corrosion, consider applying protective coatings to the shackle.
Galvanization: For shackles made of steel, galvanization (coating with zinc) can provide an additional layer of protection against rust and corrosion.
Protective Paint or Coating: Some marine shackles come with protective coatings such as epoxy or powder coatings. These coatings help prevent saltwater from coming into contact with the metal surface and reduce corrosion.
Anodizing: Aluminum shackles, in particular, can be anodized to enhance their resistance to corrosion. This process creates a protective oxide layer on the metal.
Proper storage is essential to maintain the longevity of swivel shackles, especially when they are not in use for extended periods. Storing shackles incorrectly can expose them to environmental elements that accelerate wear.
Store in a Dry Location: Avoid leaving shackles exposed to humidity, saltwater, or direct sunlight. Store them in a dry, cool area to prevent moisture from causing rust or corrosion.
Use Protective Covers: When storing shackles on board a ship, consider using protective covers to shield them from dust, dirt, and moisture. This can be especially useful in storage lockers or toolboxes.
Hang or Secure Properly: Avoid storing shackles in a way that causes unnecessary pressure or strain on the parts. Hanging shackles or securing them in a designated compartment will help avoid deforming or damaging the swivel mechanism.
Over time, even the best-maintained swivel shackles will experience wear and tear. If during inspections you notice significant wear on the pin, bearing, or body of the shackle, it may be time to replace parts or the entire shackle. Continuing to use a worn or damaged shackle can lead to failure during critical operations.
Cracks, Chips, or Deformation: If the body of the swivel shackle is cracked, chipped, or deformed, it is no longer safe to use.
Excessive Wear on the Pin or Bearing: If the pin or bearing is worn down to the point where it affects the swivel’s function, replacement is necessary.
Loss of Functionality: If the swivel mechanism is stiff, seized, or no longer rotates freely, it may be time for a replacement.
In addition to routine maintenance, it’s a good idea to have swivel shackles inspected professionally, especially if they are part of a critical rigging or safety system. A professional inspection can identify potential issues that may not be immediately visible and ensure that your shackles are in optimal condition.
Swivel shackles are essential components in marine environments, enhancing safety, efficiency, and reliability in various operations, from anchoring to rigging and towing. Proper maintenance and care are critical to ensuring that swivel shackles continue to perform at their best and avoid accidents caused by malfunctioning equipment.
By performing regular inspections, cleaning, lubricating, and protecting against corrosion, you can extend the lifespan of your swivel shackles and keep them functioning safely. Regular maintenance, proper storage, and timely replacement of worn parts will prevent unnecessary damage and ensure that your marine operations run smoothly.
When selecting swivel shackles for marine use, always prioritize quality and durability. Investing in high-quality, corrosion-resistant shackles and maintaining them properly will improve the safety and longevity of your equipment, ultimately saving you time and money in the long run.
