In the demanding world of marine engineering and offshore operations, the integrity of your mooring and anchoring systems is paramount. At the heart of these critical systems lies the kenter shackle, a specialized joining link designed to seamlessly connect lengths of chain. Whether you are outfitting a commercial vessel, securing an offshore platform, or conducting routine maintenance on marine hardware, understanding how to properly install and maintain this crucial component is essential for operational safety and efficiency. This comprehensive guide provides step-by-step instructions on the installation process, delves into the technical specifications of the Zhengmao Kenter Shackle, and explores the rigorous standards that govern marine hardware. By mastering the proper handling and installation of these connectors, maritime professionals can ensure the longevity and reliability of their anchor and mooring configurations.

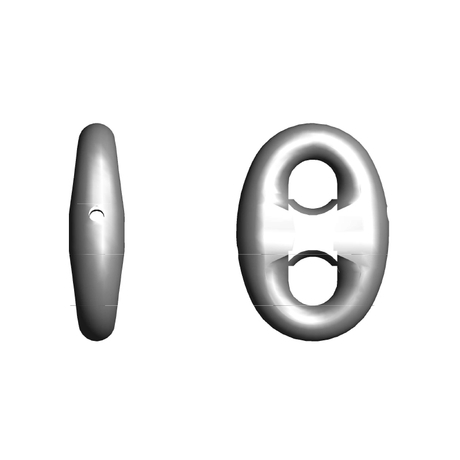

Before diving into the installation procedures, it is important to understand what makes this specific type of marine hardware so effective. Unlike standard D-shackles or bow shackles, a kenter joining link is uniquely engineered to match the profile and dimensions of the chain links it connects. This seamless integration allows the joined chain to pass smoothly over the windlass gypsy without snagging, jumping, or causing undue wear on the equipment. The design typically consists of two symmetrical halves that interlock, a center chock (or stud) that holds the halves in place, and a tapered locking pin (spile pin) that secures the entire assembly. When fully assembled, the link provides a continuous, high-strength connection that mirrors the structural integrity of the chain itself.
In marine environments, equipment is subjected to immense dynamic loads, corrosive saltwater, and extreme weather conditions. A failure in the anchoring or mooring line can lead to catastrophic consequences, including vessel drift, collisions, or environmental damage. Therefore, the connection points within the chain must be as robust as the standard links. The precision engineering of the joining link ensures that stress is distributed evenly across the connection. Proper installation is not just a matter of mechanical assembly; it is a critical safety protocol that requires meticulous attention to detail, adherence to manufacturer guidelines, and a thorough understanding of the forces at play in marine operations.
The installation of marine hardware should always begin with comprehensive preparation and strict adherence to safety protocols. Working with heavy anchor chains and mooring lines presents significant physical hazards, and personnel must be equipped with appropriate personal protective equipment (PPE), including steel-toed boots, heavy-duty gloves, safety glasses, and hard hats. The work area should be clear of obstructions, well-lit, and secure from the movement of the vessel or platform.
Prior to beginning the installation, a thorough visual and tactile inspection of all components is mandatory. Ensure that the two halves of the link, the center chock, and the locking pin are clean and free from dirt, rust, grease, or manufacturing debris. Any foreign material trapped within the interlocking mechanisms can prevent a flush fit, compromising the structural integrity of the assembled link. It is also crucial to verify that the components belong to the same assembly unit, as the halves and chocks are often machined together to ensure a perfect, customized fit. Mixing components from different units can lead to misalignment and eventual failure under load.
Installing a joining link requires patience, precision, and the correct tools. While specific procedures may vary slightly depending on the exact operational context, the following step-by-step guide outlines the standard industry best practices for assembling this critical marine connector.
Begin by bringing the two ends of the chain that need to be connected into close proximity. It is highly recommended to use chain stoppers, tensioners, or a secure rigging setup to hold the chain ends firmly in place. The chain should be slack enough to allow manipulation of the links but secure enough to prevent sudden movements. Ensure that the links to be joined are properly aligned and oriented so that the joining link will sit naturally within the chain sequence without introducing twists or kinks.
Take one half of the joining link and slide it through the final link of the first chain section. Then, carefully maneuver the half so that it also passes through the final link of the second chain section. This step requires careful handling, as the heavy steel components must be guided precisely. The half-link should now hang between the two chain ends, acting as the initial bridge.
Bring the second half of the joining link into position. Align the interlocking grooves and lugs of the second half with those of the first half. Slide the second half into place so that the two pieces mate perfectly. When properly aligned, the two halves should form the shape of a complete chain link. There should be no significant gaps between the mating surfaces. If the halves do not fit together smoothly, do not force them; disassemble, clean the mating surfaces again, and retry.
Once the two halves are interlocked, the center chock (stud) must be inserted. The chock is designed to slide into the open space in the center of the assembled halves, effectively locking them together and preventing them from sliding apart laterally. Align the chock with the corresponding slots in the assembled halves and push it firmly into place. The chock should sit flush with the contours of the link.
With the halves and the chock in place, the assembly must be secured using the tapered locking pin (spile pin). The pin is driven through a precisely machined hole that passes diagonally through the assembled components. Insert the pin into the hole and use a hammer and a suitable drift or punch to drive it home. The pin must be driven in completely so that it is tightly seated. It is essential to ensure that the pin is driven in the correct direction, as the hole is tapered to match the pin.
To prevent the locking pin from backing out due to vibration or movement, the remaining space in the pinhole must be sealed. Traditionally, this is done by driving a lead pellet or plug into the cavity above the seated pin. Use a hammer and a punch to deform the lead plug so that it expands and completely fills the hole, creating a secure, watertight seal. This step is critical for the long-term integrity of the connection, especially in dynamic marine environments.
After the assembly is complete and the lead plug is secured, a final inspection must be conducted. Visually verify that the link is properly formed, with no gaps between the halves or the chock. The lead plug should be flush with the surface of the link. Articulate the joined chain sections to ensure that the new link moves freely and does not bind against the adjacent links. If the installation is part of a larger maintenance operation, it is often advisable to consult with a shackle supplier technical service to ensure that all procedures meet the required safety and operational standards.
When selecting marine hardware, understanding the specific variations and their compatibility with different chain types is crucial. The Zhengmao Kenter Shackle is available in two distinct variations to accommodate diverse operational requirements: the Detachable variation and the SLIM variation. Each is designed with specific compatibility parameters in mind.
The Detachable variation is engineered specifically to connect stud common links. Stud links are the standard for most marine anchor chains, featuring a central stud that prevents the link from collapsing under extreme tension and adds weight to the chain. The Detachable joining link mimics this profile, providing a seamless connection that maintains the structural and operational characteristics of the stud link chain. This makes it an ideal kenter shackle for anchor chain connection in standard maritime applications.
The SLIM variation offers enhanced versatility. It is meticulously designed to be compatible with both stud links and studless links. Studless chains are frequently used in permanent mooring applications, such as securing offshore oil rigs or floating production storage and offloading (FPSO) units, where the chain is subjected to continuous dynamic loading but does not need to pass over a windlass. The SLIM variation's ability to connect both types of links makes it a highly adaptable solution for complex mooring configurations and specialized offshore projects.
Marine chains and their corresponding connectors come in a vast array of sizes to suit vessels ranging from small workboats to massive supertankers and offshore platforms. The Zhengmao Kenter Shackle is manufactured to accommodate a wide spectrum of chain dimensions. The Nominal Diameter of these shackles ranges from 12.5mm up to a massive 187mm (1/2” to 7-2/5”). This extensive size range ensures that there is a suitable connector for virtually any marine anchoring or mooring requirement.
Selecting the correct size is an absolute necessity. A connector that is too small will become a weak point in the chain, prone to failure under load. Conversely, a connector that is too large may not pass smoothly through the windlass or fairleads, causing operational disruptions and potential damage to the equipment. The nominal diameter of the joining link must exactly match the nominal diameter of the chain it is intended to connect.
The strength and durability of marine hardware are dictated by the grade of the steel used in its construction. Different applications require different grades of steel to withstand the anticipated loads and environmental conditions. The Zhengmao Kenter Shackle is manufactured to align with the stringent grading systems used for both marine anchor chains and mooring chains.
For standard marine anchor chain applications, the shackles are available in Grade 1, Grade 2, and Grade 3. These grades represent varying levels of tensile strength and yield stress. Grade 2 and Grade 3 are the most common in commercial shipping, providing the necessary robust performance for securing large vessels in diverse seabed conditions.
Offshore mooring systems demand even higher levels of performance due to the continuous, long-term exposure to dynamic environmental forces. For mooring chain applications, the shackles are available in advanced grades including ORQ (Oil Rig Quality), R3, R3S, R4, R4S, R5, and R6. These high-strength and ultra-high-strength grades are essential for the safety and stability of deep-water offshore installations, where the integrity of the mooring line is critical to the survival of the platform.
In the maritime industry, safety and reliability are governed by strict international standards and classification societies. Compliance with these standards is non-negotiable for equipment used in commercial and offshore operations. The Zhengmao Kenter Shackle is rigorously tested and certified by a comprehensive list of the world's leading classification societies.
These certifications include approval from DNV (Det Norske Veritas), ABS (American Bureau of Shipping), LR (Lloyd's Register), BV (Bureau Veritas), NK (Nippon Kaiji Kyokai), KR (Korean Register of Shipping), CCS (China Classification Society), RINA (Registro Italiano Navale), and IRS (Indian Register of Shipping). This extensive array of certifications guarantees that the product meets the highest global standards for quality, strength, and manufacturing consistency.
Furthermore, the standard products comply with critical international specifications, including ISO 1704 (Stud-link anchor chains), ISO 20438 (Ships and marine technology — Mooring chains), and API 2F (Specification for Mooring Chain for Offshore Structures). Adherence to these specifications ensures that the hardware will perform reliably in its intended application, providing peace of mind to marine engineers and vessel operators.
Proper installation is only the first step in ensuring the longevity of marine hardware. Regular maintenance and inspection are vital to detect wear, corrosion, or damage before they lead to failure. When utilizing an anchor chain connector for maintenance purposes, it is important to implement a scheduled inspection regime.
During routine dry-docking or scheduled mooring inspections, all joining links should be carefully examined. Look for signs of excessive wear on the mating surfaces, deformation of the link profile, or corrosion around the locking pin and lead plug. If a link must be disassembled for inspection or to replace a section of chain, the lead plug must be drilled or melted out, and the locking pin carefully driven out using a punch. Never reuse a locking pin or lead plug; always use fresh components when reassembling the link to ensure a secure connection.
For complex operations or when outfitting a new vessel, seeking marine shackle installation support can provide valuable guidance on best practices for long-term maintenance and care, ensuring that the anchoring system remains in optimal condition throughout its service life.
While standard specifications cover the vast majority of maritime applications, certain specialized projects require bespoke solutions. Offshore installations, unique vessel designs, or specific environmental challenges may necessitate hardware that deviates from standard dimensions or configurations. Recognizing this need, customized production and design solutions are available to meet specific customer requirements. This flexibility allows marine engineers to collaborate with manufacturers to develop joining links that integrate perfectly with their unique mooring or anchoring systems, ensuring maximum safety and operational efficiency without compromising on quality or compliance.
To fully appreciate the critical role of a joining link, one must understand the physics of mooring and anchoring. When a vessel drops anchor, it is not merely the weight of the anchor that holds the ship in place; it is the weight and the catenary curve of the chain resting on the seabed. As wind and currents push against the vessel, the chain absorbs the dynamic energy, lifting off the seabed and settling back down. This continuous movement places immense cyclical stress on every link in the chain.
The joining link must endure these same cyclical stresses without failing. The interlocking design of the kenter shackle is specifically engineered to distribute these forces evenly. Unlike a standard D-shackle, which concentrates stress at the pin and the crown, the interlocking halves of the kenter design share the load across a larger surface area. The center chock further stabilizes the link, preventing it from elongating or collapsing under extreme tension. This sophisticated distribution of force is what allows the joining link to match the breaking strength of the continuous chain.
Marine hardware operates in one of the most hostile environments on earth. Saltwater is highly corrosive, constantly attacking the steel components of the anchoring system. In addition to corrosion, the hardware is subjected to abrasive wear from sand, rocks, and mud on the seabed. In colder climates, ice and freezing temperatures can cause steel to become brittle, while in tropical regions, high temperatures and biological growth can accelerate degradation.
The high-grade steel used in the manufacturing of certified joining links is selected for its exceptional toughness and resistance to these environmental factors. However, the integrity of the connection relies heavily on the tight tolerances of the interlocking halves and the secure seal provided by the lead plug. If the installation is flawed, leaving gaps or an improperly seated pin, corrosive saltwater can penetrate the internal mechanisms of the link, leading to hidden corrosion and eventual failure. This underscores the absolute necessity of following precise installation procedures and conducting thorough post-installation inspections.
Given the critical nature of anchoring and mooring systems, the personnel responsible for installing and maintaining marine hardware must be highly trained and competent. Rigging and handling heavy chains require specialized skills and a deep understanding of mechanical principles. Maritime academies and offshore training centers emphasize the importance of proper hardware handling, including the correct procedures for assembling and disassembling joining links.
Vessel operators and offshore contractors must ensure that their crews are familiar with the specific equipment used on their installations. This includes understanding the differences between standard stud links and studless links, recognizing the various grades of chain, and knowing how to interpret the certification markings stamped onto the hardware. Continuous training and adherence to established safety management systems are essential for preventing accidents and ensuring the reliable operation of the vessel's anchoring equipment.
The design of the kenter shackle has stood the test of time, remaining a fundamental component of marine engineering for decades. However, the manufacturing processes and materials used to produce these critical connectors have evolved significantly. Modern metallurgy has led to the development of ultra-high-strength steel grades, such as R5 and R6, which allow for lighter chains with higher breaking strengths. This is particularly important in deep-water offshore operations, where the weight of the mooring chain itself becomes a significant factor.
Advancements in computer-aided design (CAD) and finite element analysis (FEA) have also allowed manufacturers to optimize the geometry of the joining link, reducing stress concentrations and improving fatigue resistance. Precision CNC machining ensures that the interlocking halves fit together with microscopic accuracy, enhancing the structural integrity of the assembled link. Despite these technological advancements, the fundamental principles of proper installation remain unchanged: meticulous preparation, precise alignment, and secure locking are still the keys to a successful connection.
Handling components that can weigh hundreds of kilograms requires careful planning and the use of appropriate lifting equipment. When installing large joining links, cranes, hoists, or chain blocks must be used to maneuver the heavy steel halves into position. Never attempt to manually lift or support components that exceed safe lifting limits. Ensure that all lifting gear is certified, inspected, and rated for the anticipated loads.
When driving the locking pin and securing the lead plug, use tools that are appropriate for the size of the hardware. Heavy sledges and specialized punches may be required for larger links. Always strike the tools squarely to avoid glancing blows that could cause injury or damage the components. Clear communication among the installation team is vital, especially when coordinating the movement of heavy chain sections and the precise alignment of the interlocking halves.
The proper installation of marine joining links is a fundamental skill that underpins the safety and success of maritime operations worldwide. By understanding the mechanics of the hardware, adhering to rigorous safety protocols, and following methodical installation procedures, marine professionals can ensure that their anchoring and mooring systems perform flawlessly under the most demanding conditions. The integration of high-quality, certified components is the cornerstone of a reliable marine infrastructure, providing the strength and durability required to navigate the challenges of the open ocean.
The Zhengmao Kenter Shackle stands as a premier solution for critical marine connections, offering unparalleled reliability through its robust Detachable and SLIM variations. With a comprehensive size range from 12.5mm to 187mm and compatibility with top-tier marine anchor chain grades (Grade 1, 2, 3) and mooring chain grades (ORQ through R6), it provides exceptional versatility for both standard and complex offshore applications. Backed by extensive global certifications including DNV, ABS, LR, BV, NK, KR, CCS, RINA, and IRS, and compliant with ISO and API specifications, this marine hardware ensures maximum safety and compliance. Furthermore, the availability of customized production and design solutions makes it an ideal, highly adaptable choice for marine engineers and vessel operators seeking uncompromising quality and secure, long-lasting anchor and mooring chain connections.
