Selecting the right components for permanent offshore installations demands absolute precision. You face incredibly harsh marine environments daily. You must balance massive payload constraints alongside zero-tolerance safety requirements. Decision-makers are steadily moving past basic material definitions. The choice now involves deeply optimizing for maximum fatigue life. You must navigate strict class society compliance through organizations like ABS or DNV. We need to align all hardware specifications with the total project lifecycle. This article outlines the essential evaluation framework. You will discover the exact methods required to specify, verify, and procure the proper system. We focus exclusively on permanent facility deployments. You will learn how application dictates link geometry. We also explore why grade selection depends heavily on specific water depths. By mastering these variables, you ensure long-term structural integrity.
Application Dictates Geometry: Studless chains are the industry standard for permanent FPSO mooring due to superior fatigue resistance, while stud chains serve specific mobile or temporary roles.
Grade Selection is Deep-Water Dependent: Moving from R3 to R4 or R5 grades reduces chain weight and footprint but requires stricter metallurgical quality control and handling protocols.
Compliance is Non-Negotiable: Viable procurement requires verifiable compliance with offshore standards (e.g., ABS Position Mooring Systems rules) and extensive proof-load testing.
Before finalizing technical drawings, you must establish strict baseline metrics. These metrics govern every subsequent engineering decision.
Permanent offshore installations operate continuously. They usually demand a 20- to 30-year design life. They must achieve this continuous operation without requiring dry-docking. Fatigue analysis forms the absolute foundation of your system design. It measures how steel responds to cyclic loading over decades. You must evaluate expected wave cycles meticulously. The constant heaving and pitching of the vessel introduces continuous stress variations. Engineers map these stress variations to predict potential failure points. They calculate cumulative fatigue damage using industry-standard S-N curves. You cannot rely on static strength alone. The material must endure millions of load cycles gracefully.
You must assess site-specific metocean data thoroughly. This step dictates the minimum required safety margins.
Gather historical wave frequency and height records for the specific installation zone.
Calculate maximum wind load forces during expected hundred-year storm events.
Model subsurface ocean current vectors acting against the vessel hull.
Determine the precise Minimum Breaking Load (MBL) required to hold the facility.
Establish dynamic tension limits to prevent shock-loading the connection points.
This profiling ensures you select components capable of surviving worst-case scenarios. Ignoring localized metocean data often leads to undersized hardware. It can also cause unexpected operational downtime.
You face a constant trade-off during the specification phase. Over-engineering causes excessive weight. Excessive steel weight directly impacts the functional payload capacity of the floating production storage and offloading unit. Every extra ton of submerged hardware reduces the permissible topside equipment. Conversely, under-engineering increases catastrophic failure risks. Finding the perfect balance ensures structural integrity. It prevents overloading the vessel's buoyancy reserves. You must optimize the diameter and grade to minimize mass while maximizing tensile strength.
Link geometry drastically affects long-term performance. You must choose the right shape for the intended operational lifespan.

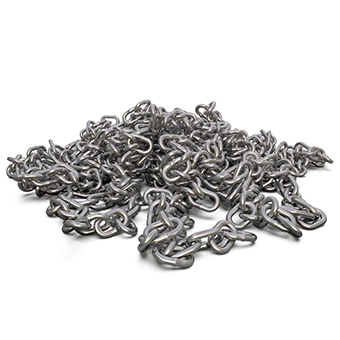

Engineers consistently favor the Studless Mooring Chain for permanent deployments. It eliminates the internal stud entirely. This open design removes critical stress concentration points. It significantly improves long-term fatigue life. Traditional studs create heat-affected zones during the welding process. These zones act as prime locations for microscopic crack initiation. By removing the stud, the links flex naturally under dynamic tension. They handle cyclic loads far better over a 25-year period. Furthermore, this geometry is lighter per meter for equivalent strength. This weight reduction directly benefits the floating facility. However, you will need specific windlasses. You also require specialized handling equipment during the initial installation.

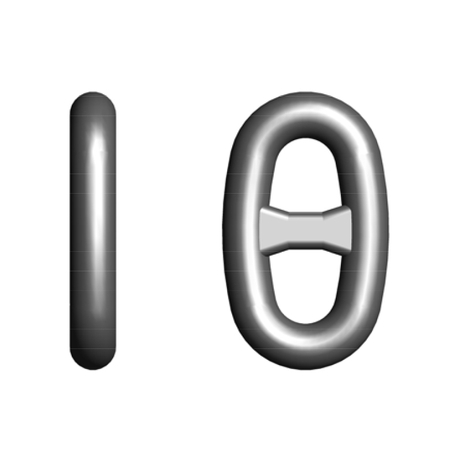

The Stud Mooring Chain serves entirely different operational needs. It works best for temporary deployments. You often see it utilized on Mobile Offshore Drilling Units (MODUs). It also suits specific articulated loading platforms perfectly. The central stud prevents the links from twisting in the chain locker. This anti-twisting feature proves incredibly valuable during frequent deployment and retrieval operations. Yet, it carries significant long-term limitations. Welded or pressed studs introduce micro-fissure risks. These hidden fissures can expand steadily over a permanent deployment. They make stud designs sub-optimal for standard permanent offshore positioning.
Review the primary differences between geometries below.
Feature Dimension | Studless Geometry | Stud Geometry |
|---|---|---|
Primary Application | Permanent offshore installations | Temporary positioning, MODUs |
Fatigue Life Expectancy | Superior (no internal welds) | Moderate (weld stress points) |
Weight per Meter | Significantly lighter | Heavier |
Handling Requirements | Specialized traction winches | Standard marine windlasses |
Twist Resistance | Lower | High |
Specify studless geometries for any deployment exceeding a ten-year continuous span.
Inspect handling equipment compatibility early in the design phase.
Using traditional stud designs for permanent setups just to reuse existing deck equipment. This severely compromises your fatigue limits.
Metallurgical composition determines both strength and operational limits. You must match the steel grade to your specific water depth.
These represent the traditional marine grades. They offer highly reliable strength. They carry more mass per meter compared to advanced alloys. You typically deploy them in shallow to medium waters. In these shallower zones, suspended weight does not severely limit the facility. They provide an excellent baseline for standard environmental conditions. They also require slightly less rigorous handling protocols during transport.
These grades form the current industry sweet spot. Most modern facilities utilize them extensively. They provide much higher yield strength. This characteristic allows for a noticeable diameter reduction. Smaller diameters mean less overall tension acting upon the floating production facility. They balance tensile strength and submerged mass perfectly. You gain superior payload margins. R4S offers a slightly improved fatigue profile over standard R4. Many engineers default to R4 for projects between 500 and 1,000 meters in depth.
Engineers design ultra-high-strength steel specifically for ultra-deepwater conditions. Depths exceeding 1,500 meters require extreme performance. R5 answers this distinct engineering call. However, this impressive strength introduces severe implementation risks.
This high-tensile material is highly susceptible to hydrogen embrittlement. Cathodic protection systems release hydrogen atoms in seawater. These microscopic atoms diffuse into the stressed steel lattice. They cause sudden, brittle failures. You must ensure flawless corrosion protection system design. You need rigorous handling protocols. Any microscopic scratches or gouges sustained during installation can lead to rapid catastrophic failure.
Match the steel grade strictly to your calculated water depth and payload limits.
Implement specialized coating protocols when utilizing R5 alloys.
Upgrading to R5 in shallow water. It introduces unnecessary metallurgical risks without providing meaningful operational benefits.
Offshore deployment leaves zero room for manufacturing errors. You must enforce the strictest quality control measures available.
You must anchor your technical evaluation in strict adherence to industry standards. Organizations like ABS, DNV, and Lloyd's Register dictate these uncompromising rules. For instance, the ABS Rules for Building and Classing Position Mooring Systems provide a mandatory compliance framework. These documents govern exact chemical compositions. They outline acceptable heat treatment procedures. Compliance ensures structural viability. It also guarantees insurability for the final installation.
Testing verifies theoretical performance limits before physical deployment occurs. You must demand complete documentation for all procedures.
Proof Load Testing: Facilities physically pull every continuous length of manufactured product. They verify the complete assembly meets classification society requirements. This process sets the internal stresses and confirms link integrity.
Break Test Samples: Engineers perform destructive testing on random sample links from each batch. They pull the metal until it shatters. This confirms the ultimate tensile strength of the production run.
Non-Destructive Testing (NDT): Inspectors use Magnetic Particle Inspection (MPI) to locate surface anomalies. They also employ Ultrasonic Testing (UT) to find internal voids. They scan every critical weld area meticulously.
Steel inevitably degrades in saltwater environments. You must factor in a specific sacrificial thickness allowance. Engineers calculate this degradation in millimeters per year. They base these calculations on highly specific field conditions. Salinity levels accelerate corrosion. Warmer water temperatures increase the degradation rate. Higher dissolved oxygen levels also play a major role. You must map these environmental variables accurately. You then add extra steel thickness to the design. This ensures the component retains its required strength even after 25 years of continuous rust.
Selecting a manufacturing partner requires intense scrutiny. You are evaluating their entire operational infrastructure.
Quality begins long before the forging process starts. It begins at the steel foundry. The manufacturer must provide unassailable documentation. They need to trace specific steel heat numbers directly. The paper trail must connect the raw molten material to the final forged link seamlessly. You cannot compromise on origin verification. If a failure occurs, engineers must trace the exact metallurgical batch instantly. Demand complete material test reports (MTRs) for every segment.
Assess the factory infrastructure carefully. They must possess the ability to forge and heat-treat continuous large-diameter links. Diameters often exceed 100 millimeters. Only a select few global facilities possess this heavy industrial capability. You must audit their furnaces. You must inspect their forging presses. Evaluate their quenching pools. Consistent heat treatment across a continuous 500-meter length is incredibly difficult. It requires massive automated systems. Substandard cooling rates will ruin the tensile properties of high-grade steel.
Moving thousands of tons of steel presents major operational challenges. It acts as a primary project hurdle. Transporting the massive payload from the factory floor to the offshore field requires robust infrastructure. Evaluate their global delivery networks thoroughly. Scrutinize their packaging and spooling methods. Proper transit securing prevents microscopic damage. Dropping a high-grade link on a concrete dock can initiate fatal stress fractures. The supplier must demonstrate proven expertise in heavy-lift maritime logistics. They should manage the transition from the manufacturing plant directly to the installation vessel.
Specifying the right structural components remains an exercise in strict risk mitigation. It demands perfect alignment across multiple engineering disciplines. You must balance complex fatigue modeling with appropriate material grades. You must enforce stringent class society testing protocols. Moving forward, apply these actionable steps to ensure project success:
Finalize your site-specific metocean data profiles completely before drafting technical specifications.
Engage directly with certified, class-approved manufacturers early in the conceptual phase.
Conduct comprehensive front-end engineering design (FEED) consultations to map out realistic fatigue limits.
Establish a clear, unyielding testing schedule for proof load procedures and destructive sampling.
A: A permanent installation typically requires a 20- to 30-year design life. Engineers dictate this lifespan through detailed fatigue analysis. They also calculate specific corrosion allowances based on the marine environment. The goal remains continuous, safe operation without requiring dry-docking or major component replacements.
A: Studless geometries eliminate the central stud footprint entirely. This removes critical stress concentration points across the link body. Consequently, it provides a significantly higher fatigue life. This makes it the ideal standard for permanent offshore installations facing decades of continuous cyclic loading.
A: Water depth directly limits vessel payload capacity. Deeper water requires significantly longer, heavier lines. You must use lighter, higher-strength grades like R4 or R5 in these extreme conditions. This prevents the suspended steel weight from exhausting the overall tension capacity of the floating system.
A: Offshore deployment mandates strict third-party certification. You must obtain approvals from recognized IACS members. Leading bodies include ABS, DNV, and Lloyd's Register. They certify that the manufacturing processes, testing protocols, and material properties meet all safety standards for permanent positioning systems.
