Selecting the correct anchor chain size represents a critical vessel safety decision rather than a simple accessory purchase. An undersized chain risks catastrophic vessel loss during severe weather. Conversely, an oversized chain unnecessarily burdens the bow. This excessive weight severely alters sailing dynamics and reduces overall efficiency. Many vessel owners fall into a common industry pitfall. They rely solely on boat length to dictate their choice. They often ignore crucial factors like displacement, windlass specifications, and material grade. You need a better method. We will outline an evidence-based approach to evaluate, size, and procure the right chain. You will learn how to balance weight, strength, and equipment compatibility. This process ensures secure and reliable mooring under challenging marine conditions.
Anchor chain sizing must account for both vessel length and maximum displacement, not just standard manufacturer guidelines.
Upgrading chain grade (e.g., from G30 to G43 or G70) allows for a smaller diameter chain, reducing bow weight without sacrificing Working Load Limit (WLL).
Windlass gypsy compatibility is a strict pass/fail criterion; a chain mismatched by even a millimeter will jam or jump under load.
Selecting between a Stud Anchor Chain and a Studless Anchor Chain depends heavily on vessel size, classification society rules, and stowage requirements.
Understanding physics forms the foundation of proper anchor chain size selection. Chain weight dictates the catenary effect. This effect refers to the natural downward curve of a deployed rode. The sagging metal acts as a crucial shock absorber. It prevents sudden wind gusts from yanking the anchor free. A heavier rode creates a deeper catenary curve. This curve keeps the pulling force on the anchor shank completely horizontal. Horizontal pull allows the anchor flukes to dig deeper into the seabed. If you select material lacking sufficient mass, the rode becomes a straight line under tension. This upward angle easily dislodges the anchor. You must calculate sufficient weight to maintain this protective curve during storm conditions.
You must establish a rigorous safety baseline for all mooring equipment. Many buyers mistakenly size their ground tackle based on ultimate breaking strength. This approach introduces severe risks. Breaking strength represents the exact point of catastrophic material failure. You should never subject your equipment to forces near this limit. Sizing must always rely on the Working Load Limit (WLL). Engineers typically set the WLL at 25% to 33% of the absolute breaking load. This safety margin accounts for metal fatigue, shock loading, and gradual corrosion. Always verify the WLL matches or exceeds your vessel's maximum calculated drag forces.
Vessel length provides an incomplete metric for equipment sizing. You must evaluate both windage and maximum displacement. Windage refers to the surface area exposed to wind above the waterline. A heavy displacement trawler features entirely different dynamic loads compared to a low-profile racing sailboat. Two vessels measuring forty feet will generate vastly different strain on their ground tackle. High-windage designs act like sails while anchored. They catch crosswinds and heavily stress the bow roller. Such vessels require significantly thicker or higher-grade metal to maintain safe mooring. Always factor fully loaded displacement into your mathematical models.
Table 1: Impact of Vessel Characteristics on Sizing Requirements | |||
Vessel Profile | Displacement Level | Windage Exposure | Sizing Adjustment Required |
|---|---|---|---|
Racing Sailboat | Light | Low | Standard baseline sizing applies. |
Cruising Catamaran | Medium | High | Upsize grade or diameter by 1 tier. |
Pilothouse Trawler | Heavy | High | Mandatory upsize; evaluate G43 minimum. |
The marine industry relies on specific grading systems to classify steel tensile strength. Grade 30, known as Proof Coil, serves as the traditional standard. It utilizes low-carbon steel. G30 offers adequate strength for everyday use but requires thicker dimensions to achieve high safety limits. Grade 43, known as High Test, utilizes higher carbon steel. It undergoes specialized heat treatments. G43 delivers approximately 50% more WLL compared to G30 of the exact same physical dimensions. This increased strength allows operators to downsize the wire diameter. A smaller diameter sheds significant weight from the bow locker. Reducing bow weight improves overall vessel handling and fuel efficiency.
Grade 70 represents an extreme high-tensile option. The transport industry originally developed G70 to secure heavy cargo. Some specialized marine applications utilize it for maximum weight reduction. It provides exceptional WLL in a very compact form factor. However, G70 requires careful consideration. The ultra-hardened steel introduces severe re-galvanization difficulties. The high heat required for hot-dip galvanizing can compromise the structural integrity of G70 steel. You must replace it entirely once the zinc coating degrades. This makes it suitable mostly for specialized racing yachts needing absolute minimum bow mass.
You need a clear framework to evaluate these material options. Determine if performance gains justify the upgraded material. Heavy displacement vessels benefit immensely from G43. The weight savings often offset the initial material upgrade. You can maintain a massive safety margin while keeping the bow light. Recreational weekend cruisers usually find G30 perfectly adequate. Analyze your cruising plans carefully. Extended offshore voyaging demands the superior strength-to-weight ratio found in higher carbon steel options.
Chart 1: Grade Comparison and Decision Matrix | |||
Chain Grade | Relative Strength | Weight Impact | Best Application |
|---|---|---|---|
Grade 30 (G30) | Baseline (1x) | Heavy | Standard recreational anchoring. |
Grade 43 (G43) | High (1.5x) | Moderate (Allows downsizing) | Offshore cruising, heavy displacement. |
Grade 70 (G70) | Very High (2x+) | Light | Racing, specialized weight-critical use. |
Understanding structural configurations remains paramount. The industry divides physical link designs into two primary categories. The first category serves standard recreational needs. We define this as the Studless Anchor Chain. This configuration lacks a center support bar inside each metal link. It offers excellent flexibility. It twists and turns easily, allowing for compact stowage inside standard anchor lockers. Shipwrights highly recommend studless configurations for vessels measuring under ninety feet. It pairs perfectly with almost all modern recreational windlasses. You will find it simple to manage, splice, and inspect.

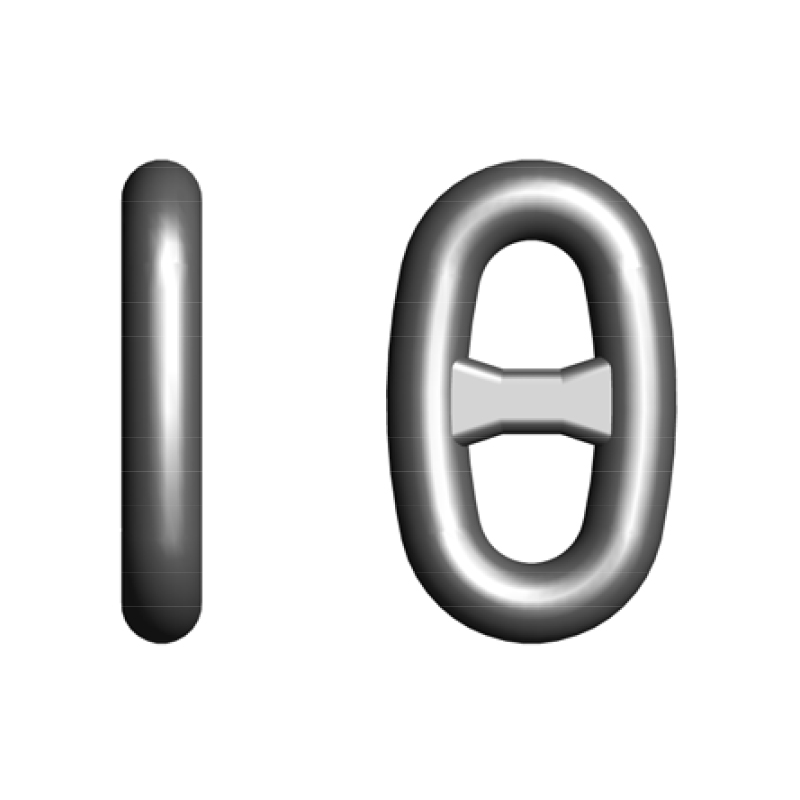

Larger vessels demand an entirely different structural approach. Extreme loads cause standard open links to deform or collapse inward. Engineers solve this by welding a solid bar across the center of every single link. We call this a Stud Anchor Chain. This welded stud prevents the metal from kinking under extreme tension. It also significantly increases the overall weight per linear meter, thereby enhancing the protective catenary curve. You will see this format used as the mandatory standard for large yachts and commercial fleets. Vessels requiring formal certification from societies like ABS or DNV must utilize studded configurations. It delivers unmatched structural rigidity during hurricane-force loading conditions.
Procuring the strongest steel means nothing if it fails to operate smoothly. The most common rollout failure involves a critical mismatch. Buyers often purchase the correct strength rating but the wrong physical specification for their equipment. Windlass gypsy compatibility operates as a strict pass/fail criterion. The gypsy wheel features perfectly molded pockets. Each link must slot seamlessly into these pockets. A mismatch of a single millimeter causes catastrophic operational failures. The metal will either slip uncontrollably during deployment or jam violently during retrieval. You cannot force an incompatible format to work.
You must understand international sizing standards. Simply requesting an "eight-millimeter" product guarantees nothing. Two identical wire diameters often feature completely different internal dimensions. The industry commonly uses DIN 766 and ISO 4565 standards. DIN 766 specifies a shorter pitch. Pitch refers to the internal length of a single link. ISO 4565 features a slightly longer pitch. Your windlass gypsy strictly requires one or the other. Feeding a longer pitch format into a shorter pitch gypsy results in immediate binding. The links ride up onto the gypsy teeth instead of settling deep into the traction pockets.
You need a foolproof strategy before finalizing any procurement. Follow a strict verification process to prevent compatibility failures.
Locate your windlass manual and identify the exact gypsy model number stamped on the metal casing.
Check the manufacturer specifications to determine if it requires DIN, ISO, or a proprietary pitch.
Use digital calipers to measure the wire diameter of your existing, properly functioning setup.
Measure the inside length (pitch) of a clean, un-worn link.
Measure the outside width of the same link to ensure locker clearance.
Executing these five steps eliminates the risk of equipment jamming and protects your mechanical retrieval system from undue stress.
Sourcing critical safety equipment demands strict vetting procedures. You should never buy unbranded hardware from generic industrial suppliers. The marine environment mercilessly exposes structural weaknesses. You must demand Proof Test Certificates for every batch. Trustworthy suppliers provide comprehensive batch-tested documentation. These documents verify the exact WLL and breaking loads achieved during factory stress testing. Traceability ensures the steel composition matches the advertised grade. A stamp on the metal itself should correspond directly to the supplied paperwork. This documentation proves vital for insurance claims and formal vessel classification surveys.
Corrosion resistance dictates the lifespan of your ground tackle. Saltwater degrades bare steel rapidly. You must evaluate the galvanization quality before taking delivery. Industry leaders utilize hot-dip galvanization exclusively. This process bonds a thick layer of protective zinc directly to the steel core. The resulting finish should feel relatively smooth. It must look visually consistent across every single link. The zinc layer needs sufficient thickness to withstand constant abrasion against rocks and sand without flaking. Inferior electro-plating methods look shiny initially but rust away within months of active saltwater immersion.
Evaluating your procurement channels yields distinct advantages. Buying pre-cut lengths from standard retail catalogs limits your options. You often settle for generic grades or sub-optimal galvanization. Working directly through a qualified marine anchor chain manufacturer changes the equation entirely. Direct sourcing allows you to specify custom continuous lengths. It eliminates weak connecting shackles in the middle of your rode. Furthermore, a dedicated manufacturer can provide specific classification society certificates required by commercial insurers. They control the quality assurance process from raw steel smelting to final zinc dipping. This direct relationship guarantees authentic, high-grade marine hardware tailored precisely to your windlass specifications.
Selecting the right anchor chain size represents a delicate balancing act. You must align your vessel's maximum displacement demands, strict windlass constraints, and chosen material grade. Ignoring any single variable compromises the safety of your entire mooring system. Upgrading to higher tensile steel allows you to reduce unnecessary bow weight. However, this upgrade only works if the physical pitch perfectly matches your retrieval equipment.
Calculate your dynamic loads based on windage and displacement, not just overall length.
Prioritize verified Working Load Limits over ultimate breaking strength.
Ensure millimeter-perfect compatibility between the link pitch and your windlass gypsy.
Demand proper certification and hot-dip galvanization from your supplier.
Do not leave your vessel's security to guesswork. Consult your windlass manual immediately to verify your required sizing standards. Calculate your precise displacement needs. Then, request a formal technical specification sheet and a custom quote from a certified marine hardware manufacturer.
A: No. Mixing grades alters the WLL baseline. Mixing physical sizes makes windlass operation completely impossible. Connectors like shackles often become the weakest link in your system. You must maintain a continuous, uniform rating from the anchor shank to the bitter end.
A: Use a precise digital caliper. Measure the exact wire diameter representing the thickness of the steel. Next, measure the inside length, known as the pitch, of a single link. Always measure clean, un-rusted, un-worn sections to ensure maximum accuracy.
A: Yes, for smaller vessels or specific anchoring conditions. The splice must be professionally executed. The windlass must feature a specialized combination gypsy. However, this setup sacrifices the protective catenary effect provided by a heavy, all-metal rode.
