Watching a vessel rest steadily at anchor often creates the impression that the anchor itself is doing all the work. In reality, the Anchor Chain plays a decisive role in how the entire anchoring system performs. The chain does far more than connect the vessel to the anchor. It transfers forces, stabilizes the anchoring position, absorbs shock from waves and wind, and helps the anchor maintain effective contact with the seabed. Understanding how anchor chain function affects maritime safety and operational efficiency allows vessel operators and offshore engineers to make better decisions when selecting and using anchoring equipment.
At the most fundamental level, an anchor chain forms the mechanical link between a vessel and its anchor. This connection allows the anchor to hold the vessel in position relative to the seabed. Without a properly designed chain, the anchor alone would not be able to maintain stable positioning under real sea conditions.
Unlike rope or lightweight connectors, marine anchor chains are designed to withstand high loads while maintaining structural stability. Each link distributes the load across the chain length, creating a continuous system capable of handling tension generated by currents, wind, and vessel movement.
An anchor system that transmits load directly from vessel to anchor would place enormous stress on the anchor itself. Anchor chains solve this problem by introducing flexibility and weight into the system.
Instead of creating a rigid straight-line pull, the chain forms a curved shape in the water. This configuration spreads the load across multiple links and reduces the sudden stress placed on the anchor. As a result, the anchoring system operates more smoothly and maintains stronger contact with the seabed.
Wind direction and water currents rarely remain constant. As environmental forces shift, the vessel may rotate or drift slightly around the anchoring point. The anchor chain allows this movement to occur without immediately dislodging the anchor.
Because the chain can adjust its position while maintaining tension, it acts as a flexible buffer between vessel and anchor. This adaptability helps maintain stable anchoring even when environmental conditions change.
One of the most important mechanical effects of an anchor chain is the creation of a low horizontal pull angle at the anchor. The weight of the chain lying on the seabed pulls the anchor more horizontally rather than vertically.
Anchors are designed to dig into the seabed and resist horizontal pulling forces. When the pull angle remains low, the anchor can embed itself more securely in sand, mud, or gravel. The chain therefore improves the holding power of the entire anchoring system.
During the initial anchoring process, the vessel slowly moves backward while the chain is paid out. This movement allows the anchor to settle and dig into the seabed. The presence of chain weight helps guide the anchor into the correct orientation for secure holding.
If the pull angle becomes too steep, the anchor may lift out of the seabed rather than digging deeper. The anchor chain prevents this situation by maintaining the necessary geometry between vessel and anchor.
An anchor that fails to maintain proper contact with the seabed can drag across the bottom. Dragging not only risks vessel movement but also creates potential hazards in busy harbors or offshore installations.
By stabilizing the pull angle and distributing loads across the chain, the anchoring system reduces the likelihood of dragging. This improvement directly contributes to maritime safety and operational stability.
The ocean environment constantly introduces dynamic forces. Waves lift and lower vessels, wind pushes against hull surfaces, and currents create continuous lateral forces. If these forces were transmitted directly to the anchor, the system would experience repeated shock loads.
Anchor chains absorb much of this movement. Their weight and flexibility allow them to act as a buffer that smooths out sudden changes in tension. This buffering effect protects both the anchor and the vessel’s anchoring equipment.
Shock loading is one of the most dangerous stresses an anchoring system can experience. A sudden jerk on the chain can cause rapid tension spikes that exceed the system’s design limits.
The catenary shape formed by the chain helps prevent these sudden loads. When the vessel moves due to waves or wind, the chain gradually straightens before transferring additional force to the anchor. This gradual response reduces stress on every component in the system.
Station keeping refers to a vessel’s ability to remain in a defined position. Offshore operations, cargo loading, and maintenance work all depend on stable positioning.
A reliable anchor chain ensures that the anchoring system can maintain this stability even during challenging weather conditions. High-quality chains provide predictable mechanical behavior, which is essential for maintaining maritime safety.
Operational efficiency often depends on how easily anchoring equipment can be deployed and retrieved. Chains designed with consistent link dimensions move smoothly through windlasses and guides.
When chains deploy smoothly, crews can anchor vessels faster and with greater confidence. Efficient handling reduces operational delays and improves overall workflow on board.
Chains that do not match the vessel’s equipment or operating conditions may create handling problems. Excessive stiffness, uneven link dimensions, or inconsistent manufacturing quality can cause jamming or slow deployment.
Selecting the correct anchor chain ensures compatibility with onboard equipment and reduces the likelihood of mechanical issues during anchoring operations.
Modern vessels rely on windlasses, chain stoppers, and other anchoring components that must interact precisely with the chain itself. Consistent link size and reliable manufacturing allow the chain to integrate seamlessly with these systems.
This compatibility improves efficiency during anchoring procedures and reduces the maintenance burden on deck equipment.
Different vessel types require different chain specifications. Small vessels may operate with lighter chains designed for moderate loads, while large ships or offshore facilities require heavy-duty chains capable of withstanding extreme forces.
Selecting the correct chain size and strength grade ensures that the anchoring system can handle the expected loads without unnecessary weight or cost.

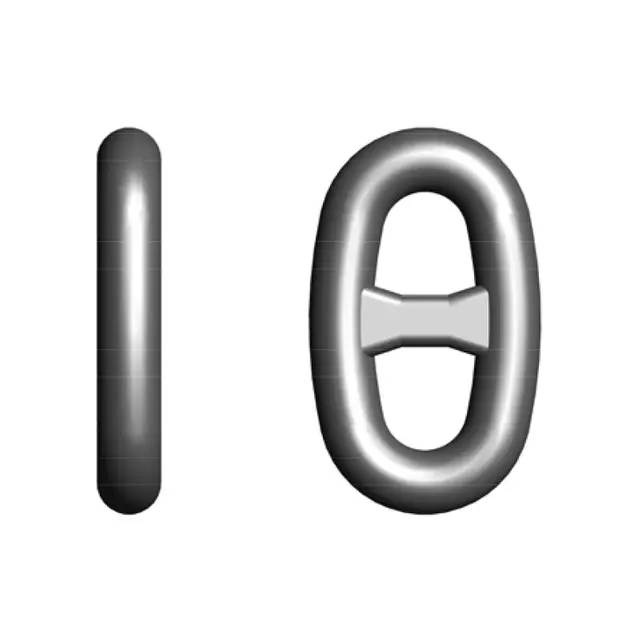

Marine anchor chains are typically manufactured in stud-link and studless configurations. Stud-link chains include a reinforcing bar inside each link that improves resistance to deformation under heavy loads.
Studless chains offer lighter weight and greater flexibility. Both designs serve important roles depending on the application and operational priorities.
Strength grade determines how much load the chain can safely withstand. Higher grades provide greater tensile strength, making them suitable for demanding applications such as large vessels or offshore installations.
Equally important is dimensional consistency. Precision manufacturing ensures that every link maintains uniform strength and interacts correctly with anchoring equipment.
A common misconception is that the anchor itself is responsible for holding the vessel in place. While the anchor is essential, the chain plays an equally critical role by maintaining the correct geometry and distributing forces across the system.
Although chain weight contributes to anchoring performance, heavier chains are not automatically better. Excessive weight may increase handling difficulty and require more powerful deck equipment.
The optimal chain specification balances strength, weight, and operational efficiency.
Marine anchor chains are specialized products designed for specific load requirements and vessel types. Differences in grade, manufacturing process, and dimensional accuracy can significantly affect performance.
Understanding these differences helps operators choose chains that match their operational needs.
Different vessels operate under different anchoring patterns. Some ships anchor occasionally in sheltered waters, while others perform frequent anchoring in busy ports or offshore locations.
Understanding operational patterns helps determine the appropriate chain strength and configuration.
Environmental conditions also influence chain selection. Chains operating in warm, highly saline waters may require stronger corrosion resistance and more frequent inspection.
Selecting chains built for harsh marine conditions improves long-term reliability.
High-quality anchor chains are produced through controlled manufacturing processes and verified through mechanical testing. These procedures confirm that the chain meets international performance standards.
Zhengmao Group Co., Ltd., established in 1974 and originally known as Zhenjiang Anchor Chain Factory, has developed decades of expertise in producing anchor chains and mooring chains using advanced flash-butt welding technology. The company’s large-scale manufacturing capacity and comprehensive product specifications allow it to supply reliable chains for a wide range of marine applications.
Function | What Happens Mechanically | Safety Benefit | Efficiency Benefit |
Force transfer | Chain distributes load across links | Prevents anchor overload | Stable anchoring system |
Pull angle control | Chain weight forms a curved profile | Improves anchor holding power | Reduces dragging risk |
Shock absorption | Chain straightens gradually under tension | Protects equipment from shock loads | Reduces maintenance needs |
Handling support | Uniform links pass smoothly through windlasses | Safe deployment and retrieval | Faster anchoring operations |
Understanding what an anchor chain does reveals that it is not merely a connector between vessel and anchor. It is a working component that shapes how the entire anchoring system behaves under real ocean conditions. From improving holding power to absorbing dynamic loads and supporting efficient operations, a well-designed chain strengthens both maritime safety and operational performance. Choosing a high-quality chain manufactured with precision and reliable materials ensures that every link contributes to the stability of the vessel and the reliability of the vessel anchoring chain.
For more information about high-strength marine chains designed for demanding maritime environments, contact Zhengmao today to learn how our anchor chain solutions support safe and efficient anchoring operations worldwide.
An anchor chain connects the vessel to the anchor while distributing forces, maintaining a low pull angle, and absorbing movement from waves and wind. These functions help the anchor hold securely on the seabed.
The weight of the chain lying on the seabed creates a horizontal pulling force on the anchor. This helps the anchor dig deeper into the seabed and maintain strong holding power.
Anchor chains absorb shock loads and stabilize vessel movement during anchoring. This reduces stress on the anchor system and improves overall station keeping.
Operators consider vessel size, environmental conditions, chain strength grade, and compatibility with anchoring equipment to ensure safe and efficient performance.
